Brand

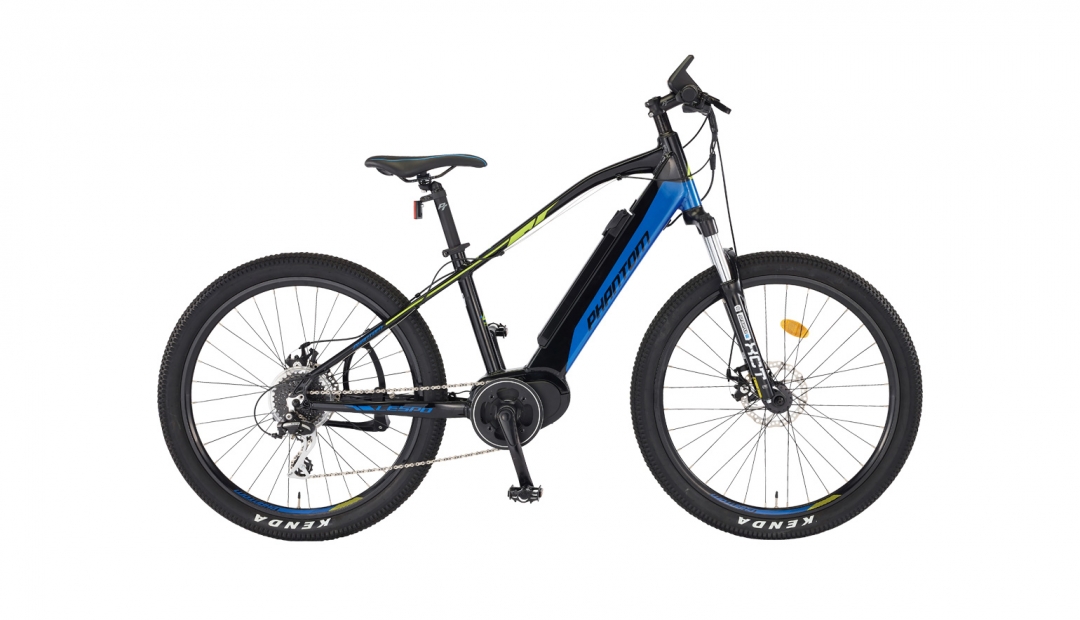

26 phantom EX
Black / Blue
-
- Drivetrain
- Power assist(5 mode)
-
- Mileage
- Power assist (mode 1):100km
-
- Top speed
- 25km/h
-
- Gradability
- 9°
-

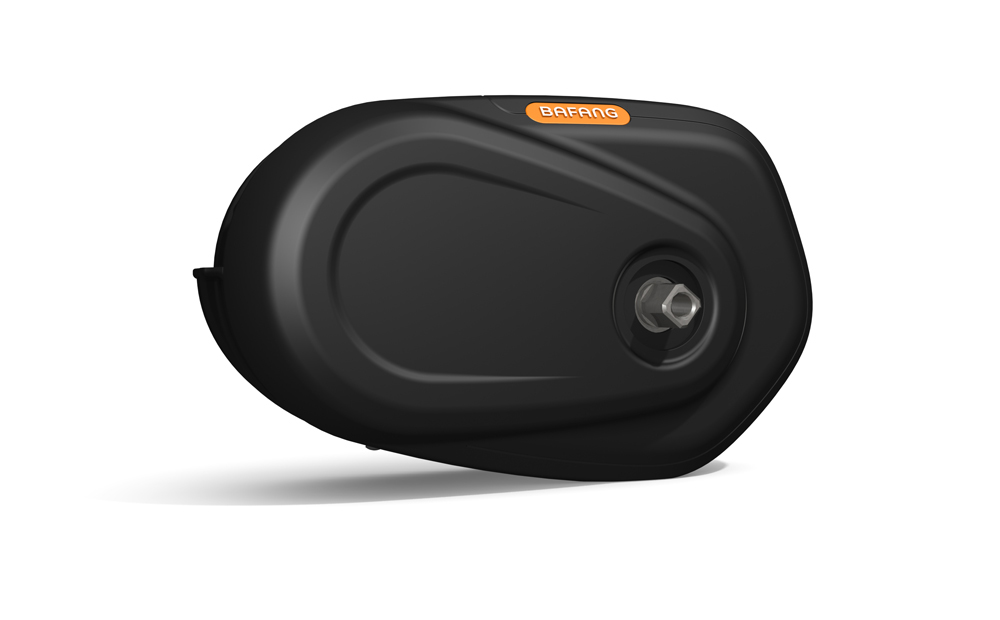

- Motor
- BAFANG MAXDRIVE 36V 250W MID-DRIVE, maximum torque 70N.m
-
- Battery
- LI-ION 36V 9.8Ah (SAMSUNG SDI CELL)
-

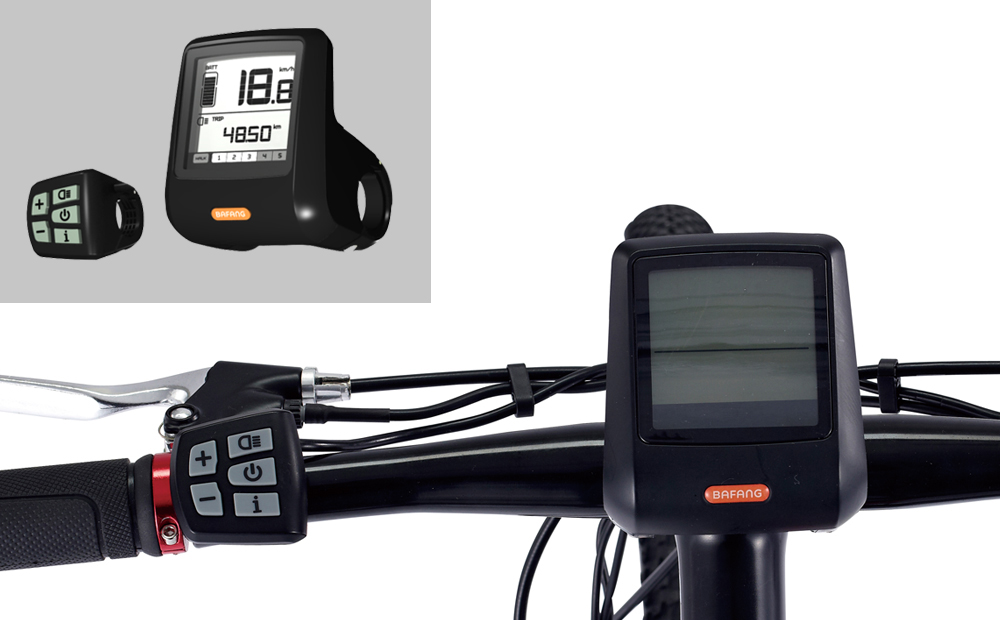

- Display
- LCD display
-
- Charger
- 42V/2A, CC/CV
-
- Frame
- 26 Aluminium E-bike frame
-
- Headset
- 1-1/8 (28.6/44/30) ahead
-

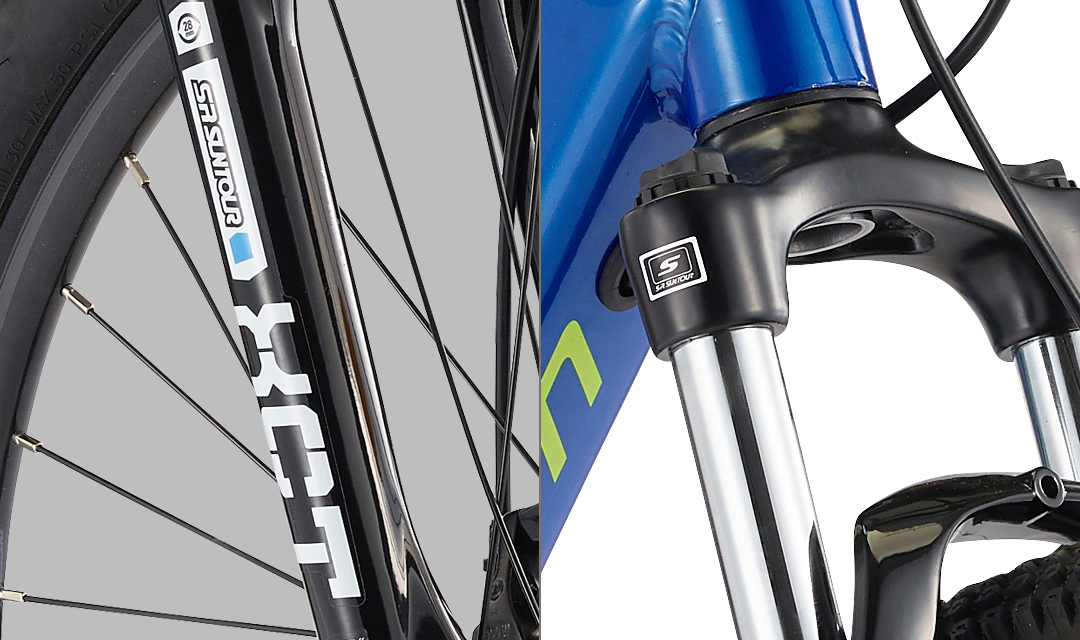

- Fork
- SR SUNTOUR XCT suspension fork
-
- Drivetrain
- SHIMANO 8-speed drivetrain
-
- Derailleur
- Rear : SHIMANO [ACERA] RD-M360
-
- Shifters
- SHIMANO [ALTUS] SL-M310
-
- Crankset
- 38T, 170mm aluminium crank arms
-
- Sprocket
- SHIMANO 11-32T cassette sprocket (CS-HG31-8)
-
- Chain
- KMC X8 (Enhanced durability)
-

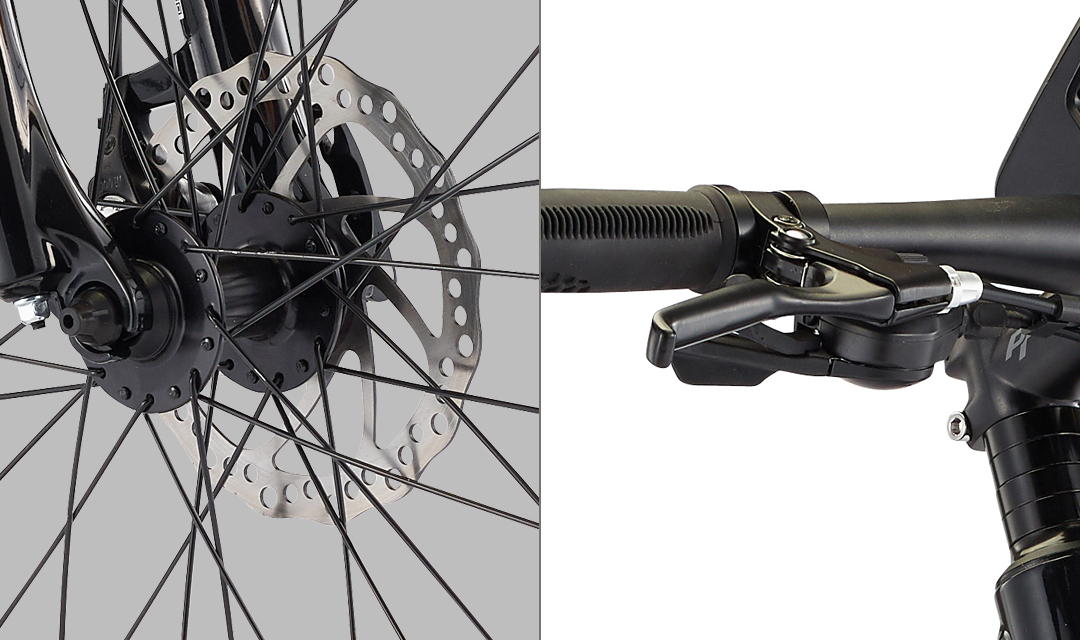

- Brakes
- TEKTRO MD-M300 mechanical disc brake (Ø160 rotor)
-
- Brake levers
- Aluminium brake lever with motor power cut-off function
-
- Rims
- 26 aluminium double walled rims
-
- Spokes
- 13G stainless steel spokes
-
- Tires/Tubes
- KENDA 26 x 2.1 / FV tubes (for E-bike)
-
- Handlebar
- Aluminium flat bar (Width : 620mm, Ø31.8)
-
- Handle stem
- Aluminium ahead stem (Extension : 80mm, Angle : 7°)
-
- Seatpost
- Ø31.6 x 350mm aluminium seatpost
-
- Seat clamp
- Ø36.5 aluminium QR seat clamp
-
- Pedals
- Aluminium pedals
-
- Weight
- 23.0 kg
