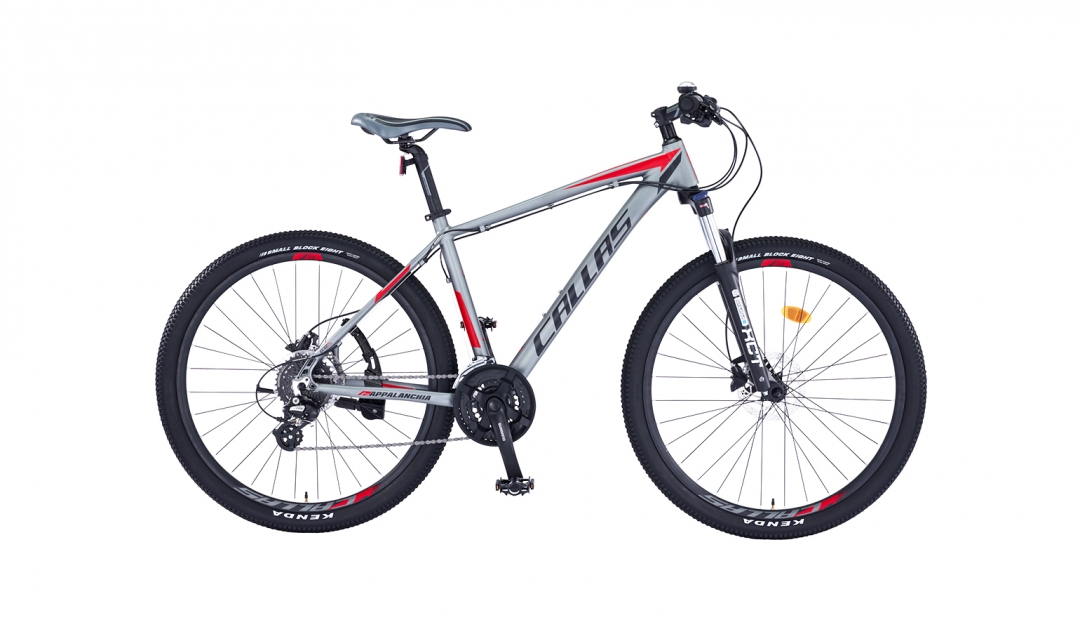

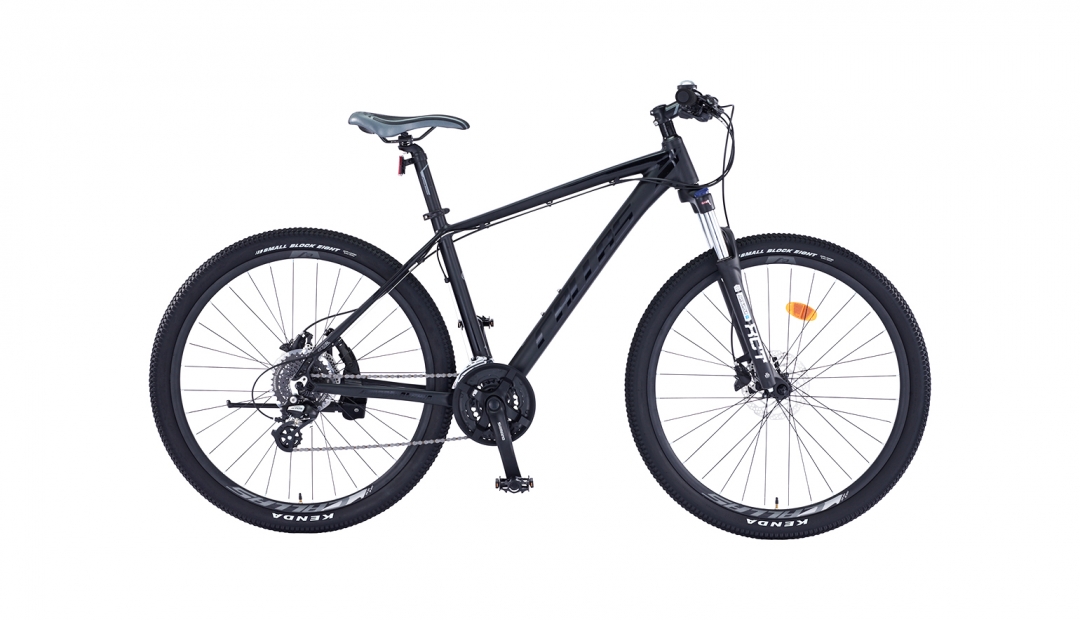

27.5 CALLAS M35

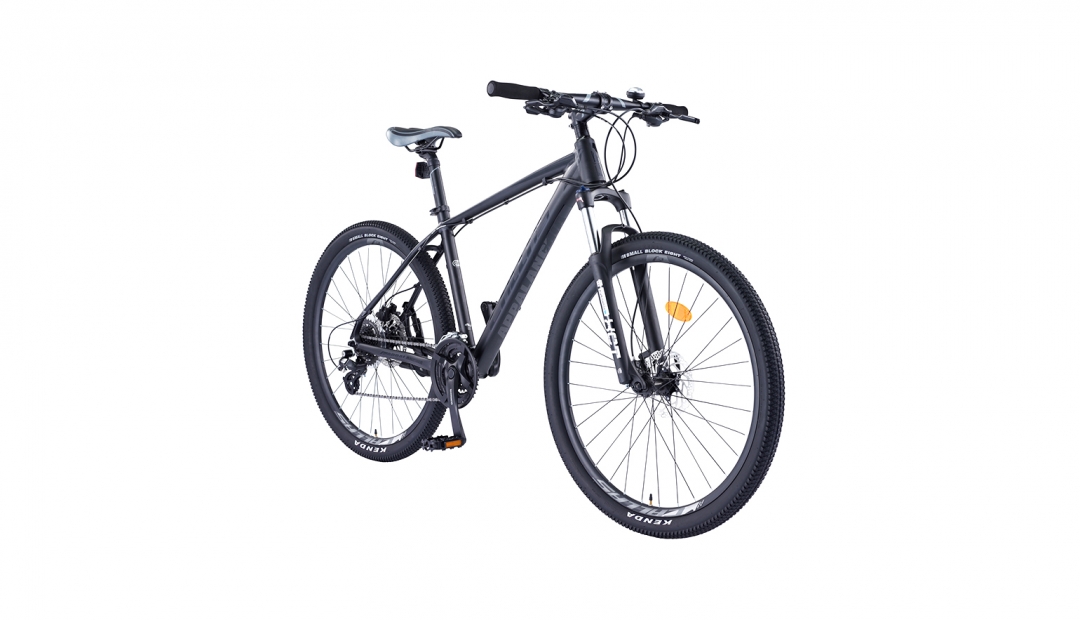

Black (Matt)
Black (Matt)

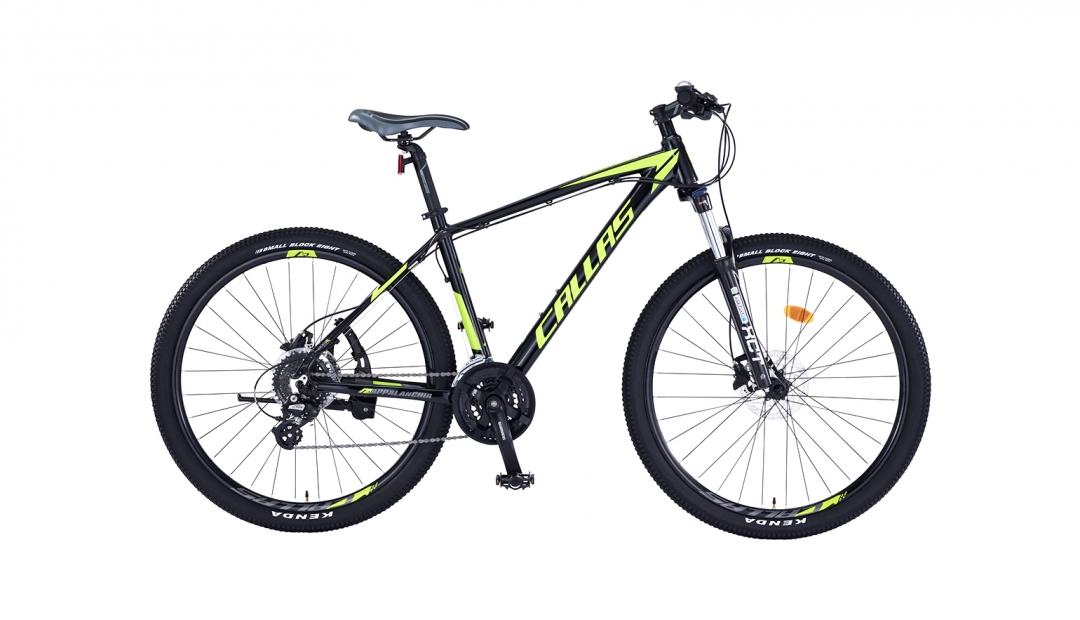

Black / Neon-Green
Silver (Matt)
-

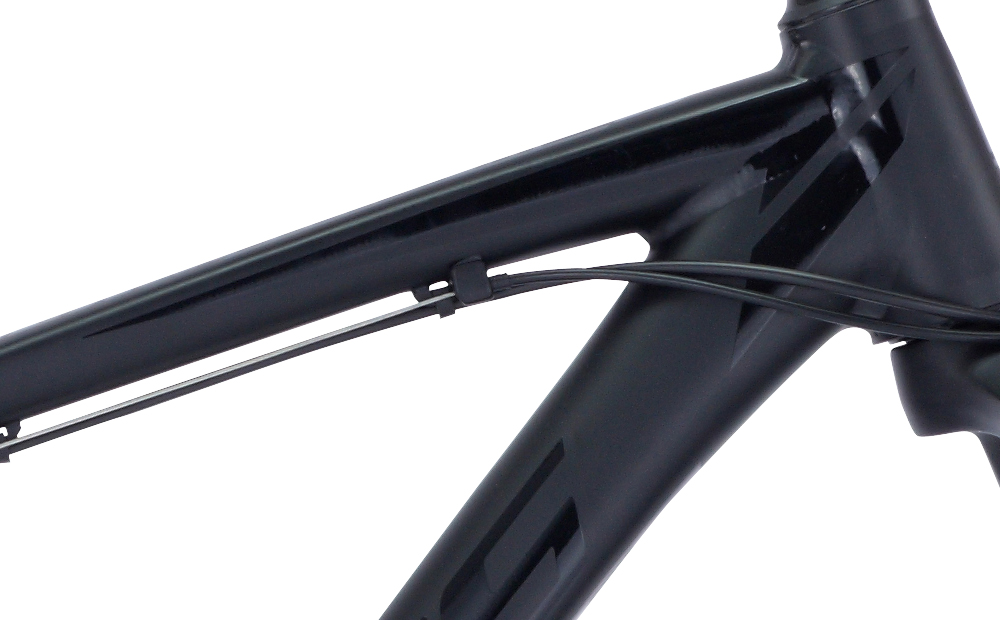

- Frame
- 27.5" double butted aluminium MTB frame (Smooth welding, Size:16"/17.5")
-

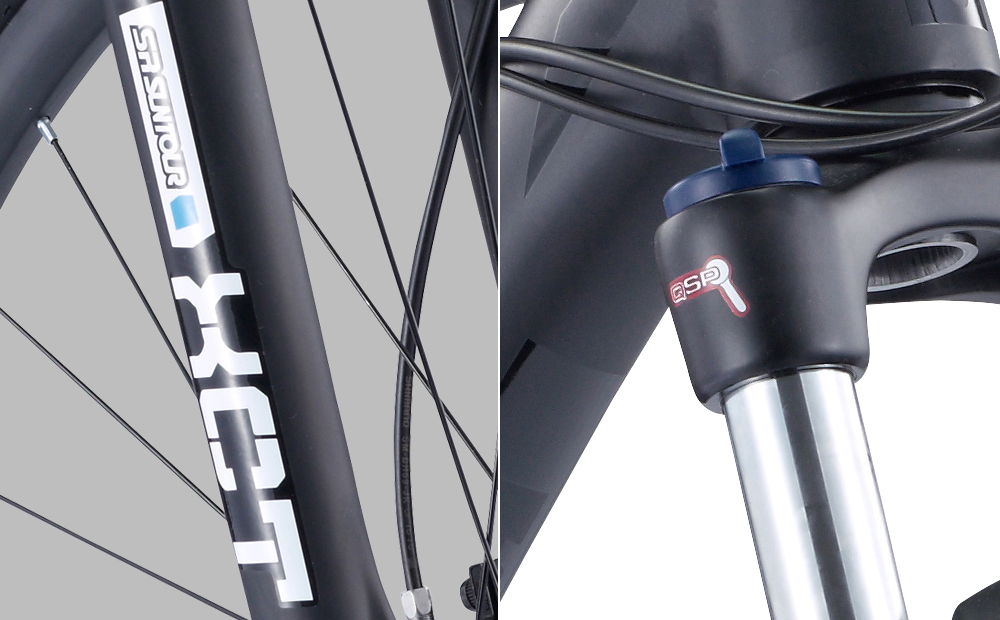

- Fork
- SR SUNTOUR XCT Suspension fork (Travel:100mm, Hydraulic lockout)
-

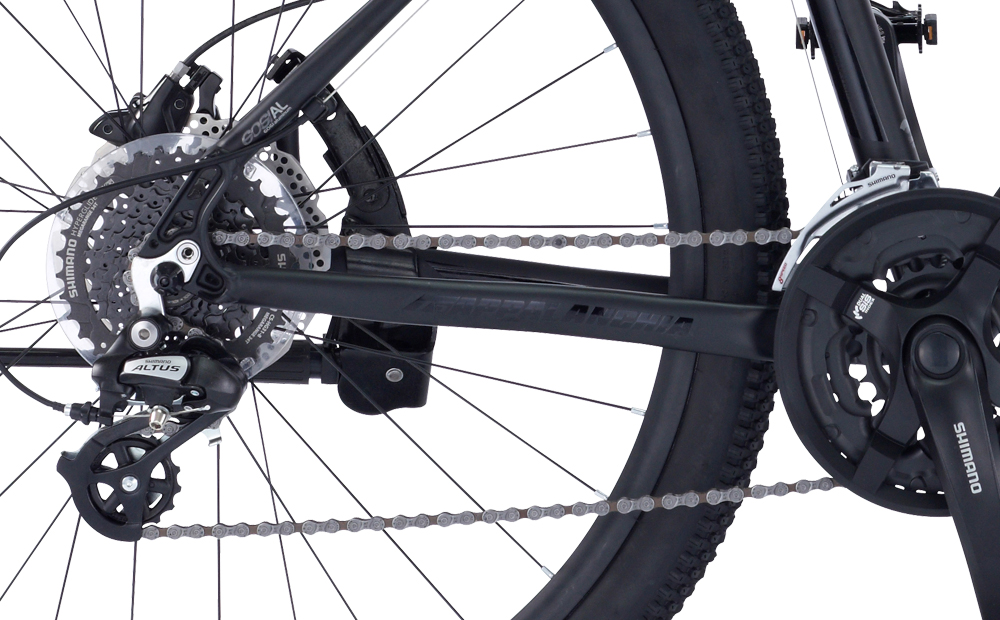

- Drivetrain
- SHIMANO 24-speed (3x8) drivetrain
-
- Derailleur
- Front:SHIMANO FD-TY700 / Rear:SHIMANO [ALTUS] RD-M310
-
- Shifters
- SHIMANO [ALTUS] SL-M310
-
- Crankset
- SHIMANO FC-TY501 (42/34/24T, 170mm crank arms, PVC guard)
-
- Sprocket
- SHIMANO 11-34T cassette sprocket (CS-HG31)
-
- Weight
- 14.4kg (17.5" size)

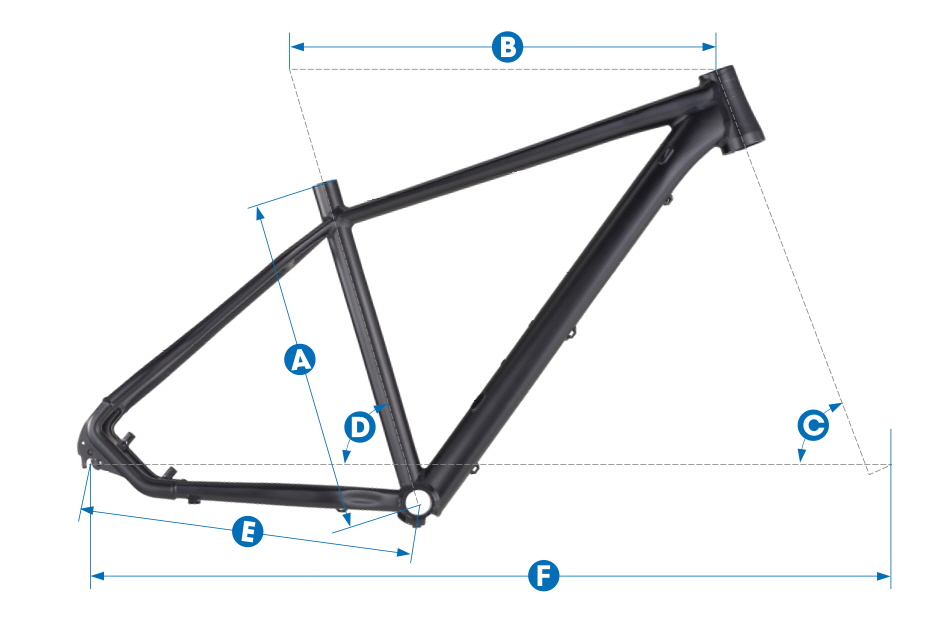

| Frame Size | ASeat Tube | BTop Tube | CHead Angle | DSeat Angle | EChain Stay | FWheel Base |
|---|---|---|---|---|---|---|
| 14.5 | 370mm | 557mm | 70° | 73° | 435mm | 1,045mm |
| 16 | 410mm | 570mm | 70° | 73° | 435mm | 1,065mm |
| 17.5 | 450mm | 580mm | 70° | 73° | 435mm | 1,075mm |
| Frame Size | 14.5 | 16 | 17.5 |
|---|---|---|---|
| ASeat Tube | 370mm | 410mm | 450mm |
| BTop Tube | 557mm | 570mm | 580mm |
| CHead Angle | 70° | 70° | 70° |
| DSeat Angle | 73° | 73° | 73° |
| EChain Stay | 435mm | 435mm | 435mm |
| FWheel Base | 1,045mm | 1,065mm | 1,075mm |
